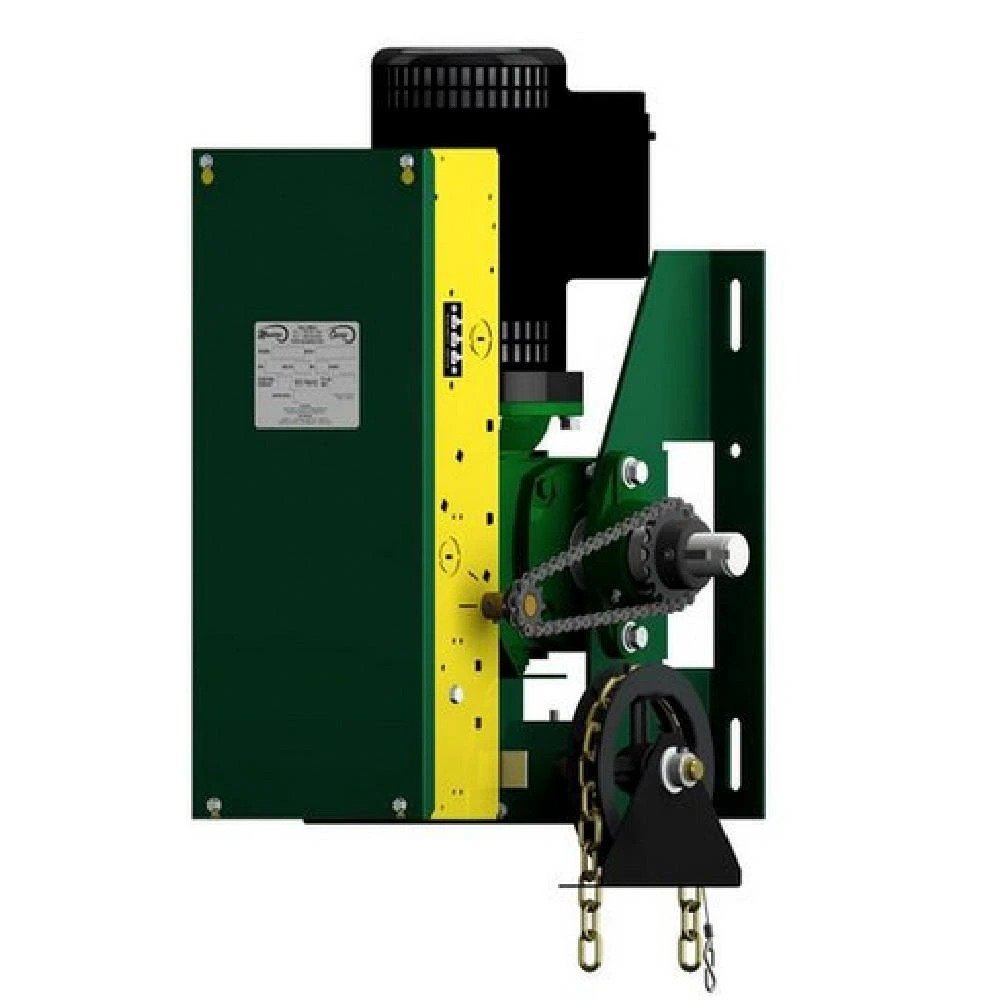

Manaras Opera MGH Super Heavy Duty Commercial Garage Door Opener

Product Highlights:

• Part Number: OPERA-MGH
• Very heavy SUPER-duty garage door operator
• 3 motor sizes available
• Comact design and smooth operation
• Electrically activated drum-band brake
• Chain hoist included for emergency manual operation in the event of a power failure
• Floor-level engaging device and electrical cut-out system for safe operation
• Electrically activated drum brake
• Optional features include the new Electronic Control Board (BOARD 070) and electrical controls
• Many mounting options
• Accu-cam feature for precise and easy adjustments
• Corrosion protection for longer life
• Electrical enclosure to protect important components
• Two-year warranty

Technical Information: (MGH)

• Supply Voltage: 115, 230 Vac single-phase, 208, 460, 575 Vac three-phase
• Control Voltage: 24 Vac class 2 transformer, 2 amp fuse type ACG
• Motor: Continuous duty ½, ¾, 1, 1 ½, horsepower
• Operator Output Speed: 43 RPM
• Net Weight (Operator only): 137 Lbs. (62 Kg)
• Standard Wiring Type: C2 (momentary contact to open/stop and constant-pressure-to-close)
• Application: Very heavy duty worm gear for sectional doors, rolling doors and grilles
• Duty: 25 cycles/hour or >80 cycles/day maximum
