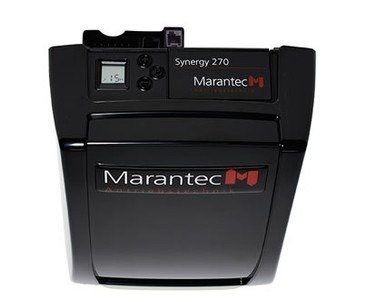

Marantec Synergy 270 3/4 HPCS 2-Piece Rail Residential Garage Door Operator

Performance & Power

• Power: 750 Newtons / ¾ HPcs (Horsepower Comparable)
• DC Smart Motor® for powerful, ultra-quiet operation
• Soft Start/Soft Stop technology reduces wear and noise
• Programmable travel speed up to 6.3 in./sec.
• Rotatable power head for flexible installation

Integrated LED Lighting

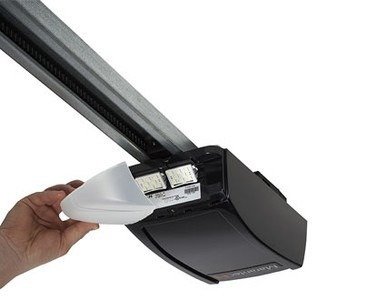

• 378-lumen integrated LED lighting
• Over 30,000-hour LED lifespan
• LED lighting does not attract insects
• Low standby power consumption

Drive & Rail System

• Pre-tensioned full steel chain rail
• Galvanized C-rail with sealed motor gear case
• One-piece semi-closed drive system
• Requires only 1.25 in. of headroom
• Drive system length (7 ft. door): 10 ft. 6.25 in.

EOS Intelligent Control System

• Easy Operating System (EOS) with self-learning technology
• Automatic learning after initial setup
• LCD display with guided 3-step programming
• Numeric display for diagnostics and troubleshooting
• Status display for system monitoring
