Manaras Opera Rapido RSH High-Speed Commercial Door Operator

The Manaras Opera Rapido RSH is a high-speed, heavy-duty industrial jackshaft operator designed for demanding commercial sectional door applications. If you need a reliable manaras opera rapido rsh operator for a properly counterbalanced sectional door, this model provides a commercial solution built around fast operation and frequent daily use.

The manaras opera rapido rsh is designed for standard, high- and vertical-lift sectional doors. Manaras specifies the operator for applications exceeding 100 cycles per day, making it a specialized option for commercial facilities where a standard garage door operator may not provide the required operating characteristics.

Manaras Opera Rapido RSH High-Speed Operator

The Manaras Opera Rapido RSH uses a high-speed V-belt drive system and is designed to provide up to twice the speed of a conventional jackshaft operator. Soft-start and soft-stop operation helps manage the movement of the door while reducing mechanical stress throughout the door system.

The manaras rapido rsh is intended for properly counterbalanced sectional doors. Manaras specifies a maximum door weight of 750 pounds for the standard application, with additional requirements applying to doors above that weight.

For a commercial facility that needs a high speed commercial door operator, the RSH can provide faster door movement while maintaining controlled starts and stops. The actual door speed must remain within the manufacturer’s specified limits for the installation.

Designed for More Than 100 Cycles Per Day

A key characteristic of the manaras opera rapido rsh is its high-duty application rating. Manaras identifies the RSH for applications exceeding 100 cycles per day, making it suitable for commercial environments where doors are opened and closed frequently.

High-cycle applications can include facilities where rapid vehicle movement is important. Manaras specifically identifies applications such as first responder and emergency vehicle facilities, automotive dealerships, transportation facilities, airports, military facilities, and energy-efficient commercial buildings.

The manaras rsh operator should still be selected according to the complete door application. Expected daily cycles, door weight, door balance, lift configuration, electrical supply, and safety requirements should all be verified before ordering.

Up to 2X Faster Door Operation

The Manaras Opera Rapido RSH is designed to provide up to two times the speed of a conventional jackshaft operator. This faster operating capability can help reduce the amount of time a commercial door remains open during normal traffic flow.

The rapido rsh operator uses speed-management features together with soft-start and soft-stop operation. These features are intended to provide controlled acceleration and deceleration rather than simply increasing the speed of the door throughout the entire operating cycle.

When specifying a high speed garage door operator, the door itself must be capable of operating at the required speed. Proper counterbalancing and correct hardware selection are important parts of the overall installation.

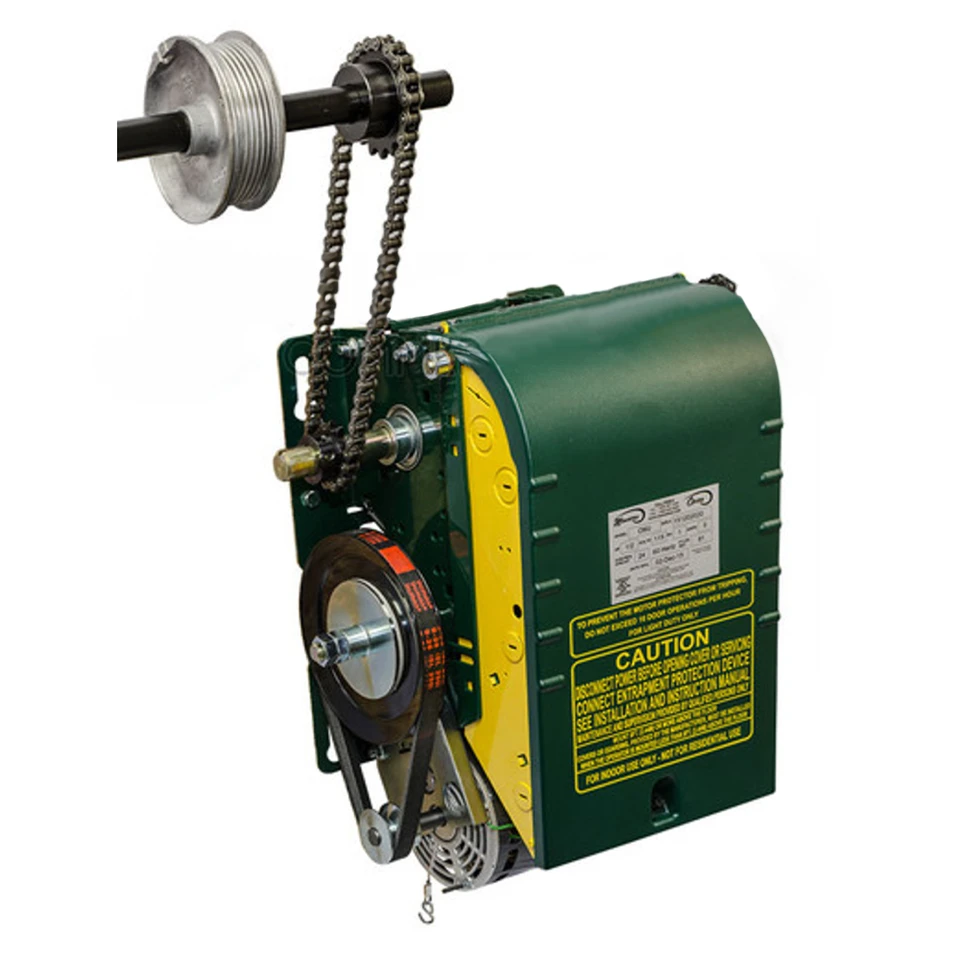

Heavy-Duty Jackshaft Design

The manaras opera rsh is a heavy-duty industrial jackshaft operator. Its V-belt drive system is designed for commercial sectional doors requiring frequent operation.

The operator can be wall- or shelf-mounted on either side of the door, providing installation flexibility for compatible commercial applications. It also incorporates a chain hoist for manual operation with a floor-level engaging device.

The commercial jackshaft operator configuration allows the operator to be positioned according to the requirements of the door and surrounding installation space. The exact mounting arrangement should always follow the manufacturer’s installation documentation.

Electronic Controls and Speed Management

The Manaras Opera Rapido RSH uses the Manaras-Opera Electronic Control Board platform. The control system provides onboard control and speed-management functions for the operator.

Depending on the configuration, the manaras opera rapido rsh can include features such as an onboard radio receiver, programmable maximum run timer, mid-stop, timer-to-close, test buttons, reverse-wiring detection, and other commercial control functions.

Monitored control configurations are also available. These can provide monitoring of primary external entrapment protection devices, helping the operator meet the requirements of the applicable installation configuration.

Commercial Safety and Manual Operation

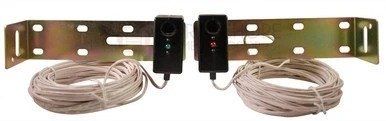

The manaras rapido rsh is available with control configurations supporting commercial entrapment protection. Manaras documentation identifies monitored NEMA 4X photo cells as an option for the monitored version, with additional ancillary protection devices available depending on the installation.

The operator also includes a manual chain hoist for situations where manual operation is required. The chain hoist includes a floor-level engaging mechanism and electrical cut-out.

Safety equipment should never be bypassed or disabled. The heavy duty sectional door operator should be installed, adjusted, and tested according to the manufacturer’s instructions and applicable local safety requirements.

Electrical and Application Requirements

The Manaras Opera Rapido RSH is available in electrical configurations designed for commercial installations. Manufacturer documentation identifies single-phase power configurations including 115V, 208V, and 230V AC, with a 1 HP heavy-duty motor configuration.

Before purchasing the manaras rsh operator, verify the electrical service available at the installation site and the exact operator configuration required. Electrical specifications can vary depending on the ordered configuration.

The RSH is intended for properly balanced sectional doors. Manaras documentation also specifies limits for door speed and mechanical output, so the complete door and operator system should be matched according to the manufacturer’s requirements.

Where the Rapido RSH Fits Best

The manaras opera rapido rsh is particularly relevant for commercial facilities where fast sectional-door operation and frequent daily cycling are important. Emergency-response facilities, transportation operations, dealerships, airports, and similar commercial environments can benefit from a high-speed operator when the door application is properly suited to it.

The Manaras Opera Rapido RSH is not a universal replacement for every commercial garage door operator. Its high-speed characteristics and application requirements mean that the existing door should be evaluated carefully before selecting this model.

Verify Compatibility Before Ordering

Before purchasing the manaras opera rapido rsh, verify the door type, counterbalance, door weight, lift configuration, required operating speed, cycle frequency, electrical supply, and available mounting space.

For current manufacturer specifications and product information, visit the Manaras Opera Rapido RSH product page.

You can also review the manufacturer’s Manaras technical documents for installation manuals, specification sheets, wiring information, shop drawings, and other RSH documentation.

Shop the Manaras Opera Rapido RSH

If your commercial facility needs a fast, heavy-duty operator for a properly counterbalanced sectional door, the Manaras Opera Rapido RSH provides a purpose-built high-speed solution.

The manaras rapido rsh combines a heavy-duty jackshaft design with speed management, soft-start and soft-stop operation, commercial controls, and manual chain-hoist operation.

For additional commercial operator options, visit our commercial garage door opener category to explore other commercial door operator solutions.

Always verify the exact door and installation requirements before ordering the manaras opera rapido rsh. Proper application matching and professional installation are essential for reliable commercial door operation.
